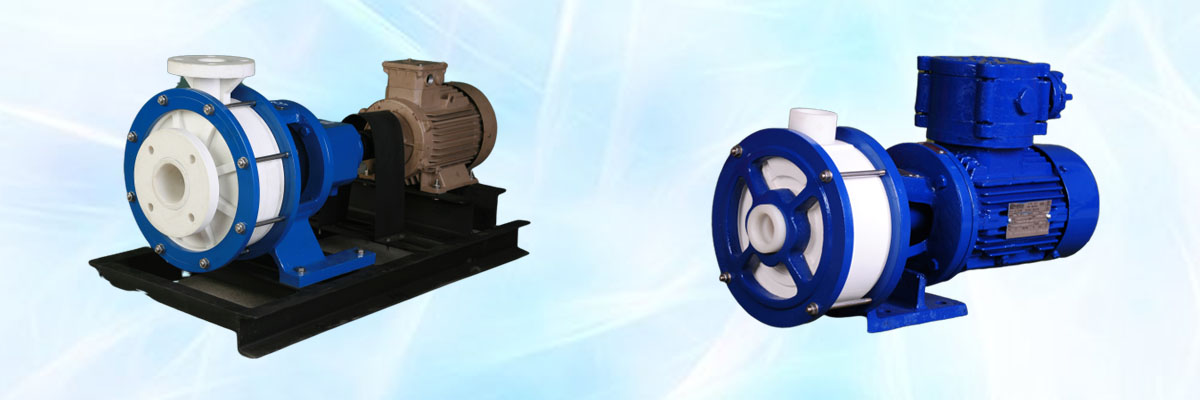

Polypropylene pumps

Anala Polypropylene end suction centrifugal pumps are injection moulded, horizontal back-pull- out type with volute casing, single stage centre line design with CI brackets. The moulded parts are designed to stand high flange loads and pressure from the delivery pipeline.

These PP pumps are economic alternative to Alloy 20, Hastelloy C and PVDF pumps to handle highly corrosive liquids.

Anala Chemical pumps are incorporated with certain simple and highly effective features

Dry run resistor

Anala Acid Transfer pumps are fitted with dry-run-resistor which lubricates mechanical seal for a limited period (maximum 20-30 minutes), in the event of pump running without liquid in the pump casing (Dry run).

The major problem encountered in handling corrosive liquids is dry-run of the pump which damage mechanical seal necessitating expensive replacement. Many customers who are frustrated with this problem are relieved of it, with this simple innovative mechanism and are highly appreciative of this feature.

In addition, we also supply pumps with reliable mechanical seal with certain inner components of the seal in Hastelloy C material. This adds to higher reliability of our PP pump and are liked and appreciated by all customers.

Another salient feature of Anala PP pumps is that the casing in volute type and the impellers are semi-open type. These facilitate handling of effluent type, and thick liquids.

Anala PP pumps are available in both monobloc and coupled versions.

Anala Industrial Chemical pumps are versatile and used in effluent transfer application where the effluent is corrosive in nature.

Anala pumps are small Acid pumps and handle highly corrosive chemicals.

  • Monobloc Polypropylene pump

    Pump available to handle corrosive liquid.

    Type : Stub shaft

    Capacity : 500 lph to 50000 lph

    Head : 25 M

    Duty : Continuous

    Temp : 70 Deg. Max.

    Impeller type : Semi-open

    Mech. Seal : Hastelloy C and SS 316 spring loaded mech. Seal with Sic vs Sic Face combination

    Special feature : Can be fitted with any standard motor.

    Special Arrangement : Dry Run Resistor

    Sleeves : Hastelloy “C”

  • Coupled Polypropylene pump

    Pump available to handle corrosive liquid.

    Type : Coupled type

    Capacity : 500 lph to 50000 lph

    Head : 50 M

    Duty : Continuous

    Temp : 70 Deg. Max.

    Impeller type : Semi-open

    Mech. Seal : Hastelloy C and SS 316 spring loaded mech. Seal with Sic vs Sic Face combination

    Special Arrangement : Dry Run Resistor

    Sleeves : Hastelloy “C”

  • Monobloc Polypropylene pump with Flame Proof Motor

    Pump available to handle corrosive liquid.

    Type : Stub Shaft

    Capacity : 500 lph to 50000 lph

    Head : 25 M

    Duty : Continuous

    Temp : 70 Deg. Max.

    Impeller type : Semi-open

    Mech. Seal : Hastelloy C and SS 316 spring loaded mech. Seal with Sic vs Sic Face combination

    Special feature : Can be fitted with any standard motor.

    Motor : Crompton/ Bharath Bijilee

    Special Arrangement : Dry Run Resistor

    Sleeves : Hastelloy “C”

  • Coupled Teflon/PVDF pump

    Pump available to handle corrosive liquid.

    Type : Stub-shaft and coupled types

    Capacity : 500 lph to 50000 lph

    Head : 25 M

    Duty : Continuous

    Temp : 70 Deg. Max.

    Impeller type : Semi-open

    Mech. Seal : Hastelloy C and SS 316 spring loaded mech. Seal with Sic vs Sic Face combination

Application : Corrosive liquids like 1. HCL 33%, H2So4,Alakli base liquid 2. Acid & corrosive effluent 3. Acid & Alkali unloading application, etc.

WE ARE ALSO AUTHORIZED DISTRIBUTOR FOR EBARA PUMPS
