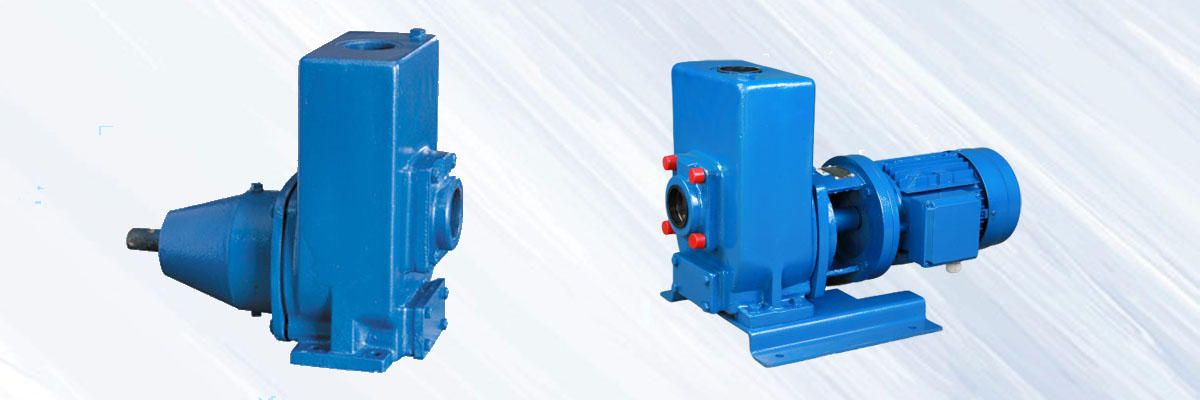

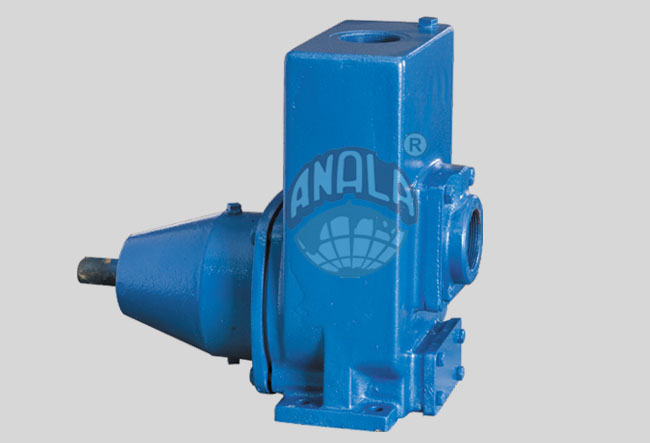

SELF-PRIMING NON- CLOG PUMPS (COULPED)

FEATURES

Graded casting & EN-8/SS-316/SS-410 Shaft increase service life.

Minimum need for inspection and maintenance because greased for life, external lubrication.

Drive option, of electric motor, coupled or belt drive version, OR by petrol/diesel engine.

Perfect sealing assured by high quality mechanical seal which cannot run dry because of in-pump oil reservoir.

MATERIAL OF CONSTRUCTION AVAILABLE

Special features : It can be handle sludge and solids to size upto 24mm.

PUMP CASING : Cast Iron / SS-316, SS-304 / Bronze or as per request

SHAFT : EN-8 / SS-316, SS-304 or as per request

MECHANICAL SEAL : Carbon Vs. Ceramic / Tc Vs. Tc with NBR / Viton / PTFE

APPLICATIONS

Effluent treatment, Sewage Plans, Dyes and Intermediate Industries.

De-watering Docks, Ports, Vessels, Swamps, Basements, Trenches, Construction sites, Swimming Pools etc.,

Pumping petroleum products like L.D.O., Diesel, Petrol, Kerosene etc.,

Transfer of Chemicals, Solvents, Effluent, Hot Water, Chilled Water, Condensate etc.,

DESIGN parameters for Non-clog pump

Perfect self priming action with maximum suction head of 8 meters.

Back Pullout design, simplifies inspection and maintenance

Impellers with wider flow passage avoid clogging and can handle solids upto 40mm diameter

Compact light weight and vet rugged construction

RANGE

Capacity : Up 270 M/Hr.

Head : Up to 57 Mtrs.

Suction Head : Up to 8 Mtrs.

Solids : Up to 40 mm Dia.

Capacity : These self priming mud pumps are available to capacity of 80 M3/Hr @ 3 kg//cm2
